YUYIN Low-E Glass refers to a series of high-performance low-emissivity products manufactured by state-of-the-art vacuum sputtering coating equipment.

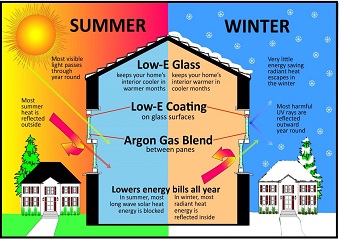

During production, the vacuum sputtering process coats glass surfaces with several layers of different materials. Among these, a silver layer effectively reflects infrared rays while maintaining excellent thermal performance.
Beneath the silver layer is an anti-reflective tin oxide (SnO2) base layer that increases the transparency of the glass, Above the silver layer is an isolating nickel-chromium (NiCr) alloy coating. The main function of the top anti-reflective tin oxide (SnO2) layer is to protect the other coating layers. This product offers the high transparency, low reflectivity, good thermal insulating and energy-saving properties required of modern architectural glass and green building design!
Thickness | 3.2mm,4mm,5mm,6mm,8mm,10mm,12mm |
Size | 2440*1830mm; 3300*2140mm; 3300*2250mm; 3300*2440mm |
Color | Clear, Grey, Blue, Green |
Container | 20'GP/20'OT/20'HQ/40'GP/40'OT/40'HQ |
